Wabasha Bluff

picture of Wabasha bluff slope failure 4.28.18

On April 30, Saint Paul Public Works began an assessment the Wabasha Bluff and surrounding area where a slope failure occurred on Saturday afternoon, April 28. Large pieces of rock debris from the bluff were scattered across Wabasha Street prompting the city to close the street and evaluate the conditi

on of the bluff. There were no injuries or damage to private property.

Saturday evening, April 28, geologists from the Minnesota Department of Transportation conducted a preliminary assessment. On April 30, City of Saint Paul  hired Itasca Engineering to complete a full assessment of the bluff at that location.  Itasca will recommend an action plan to address:



  • Any immediate safety concerns;
  • Next steps for remediation and clean up; and
  • Future long-term mitigation efforts.

Wabasha Street - Findings Presentation

October 24:

Wabasha Street reopened to traffic after the April 2018 rockslide

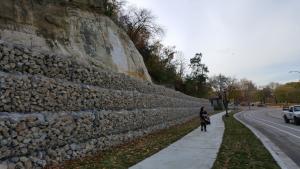

  • City of Saint Paul reopened Wabasha Street to vehicles and pedestrians at 3:30 p.m. on October 24.
  • Saint Paul Public Works will schedule a mill and overlay on this stretch of Wabasha for next year.
  • Ward 2 Councilmember Noecker will be working with the neighborhood to propose aesthetic improvements as part of a future-year capital project request.





October 12:

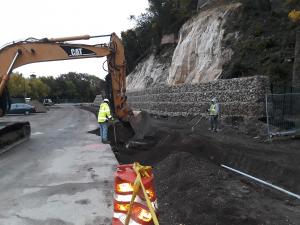

prepping the area for the sidewalk construction near the gabion wall on Wabasha Street in Saint Paul

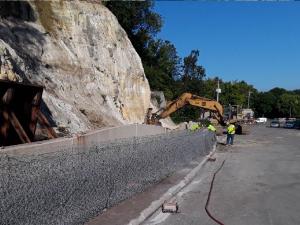

  • Rain put a damper on road repair work this week. In anticipation of the inclement weather, the contractor (Urban Co.) placed aggregate between the road and new gabion wall (instead of common dirt backfill) to help the site to quickly dry-out and  allow contractors the ability to restore the base materials for the new concrete sidewalk and curb.
  • City bridge maintenance continues to clean and paint ornamental railing south of the project.  City electricians coordinated with Urban Co. to relocate street lighting conduit and lantern-style lightpost bases.
  • Concrete sidewalk will be formed and poured tomorrow (Saturday 10/13).  Like Bolander, Urban Co. has been responsive to the city’s desire to maintain project schedule, and provided Saturday work.
  • Concrete curb and bituminous patching is scheduled for next week.
  • The city and contractor have been coordinating with NeDA community group to accommodate a public art installation on the north end of the project.
  • We remain on schedule for re-opening Wabasha Street mid-November.



September 28:

gabion wall along Wabasha Street in Saint Paul

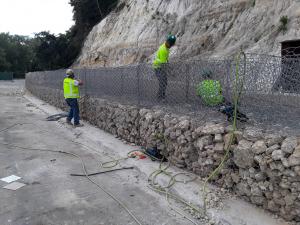

Contractors with wire cages building the gabion wall on Wabasha

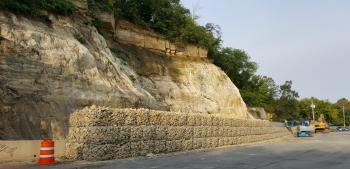

  • On September 28, crews completed the gabion wall system that will protect Wabasha Street from potential future rock slide threats.
  • A second contractor will arrive on site on October 1, to perform necessary road repairs. Sections of curb and pavement will be removed, realigned, and replaced.  A concrete sidewalk and grass boulevards will be reconstructed on the west side of Wabasha Street. Road repair work will be completed in early November.  Following these final repairs, the road will be re-striped and opened up to normal traffic.
  • Public Works received a request to partially re-open the road to single-lane vehicle travel during upcoming road repairs. The contractor requires the full road width to safely perform road and curb repair work; Therefore, the road must remain fully closed. Please be assured that Public Works will open Wabasha Street to traffic as soon as possible.



September 17:

September 11:

pw - Wabasha bluff with gabion wire stacked on sidewalk
  • Last week, the City began work with its contractors to construct the gabion wall system that will protect Wabasha Street from potential future rock slide threats.
  • This week, contractors are assembling and placing wire baskets, filling them with limestone riprap, and securing them to form a barrier that can resist impact and dissipate energy from rock fall.  Wall construction will continue through September.
  • The City publicly advertised for bids to repair the roadway. This work will follow gabion wall construction and is necessary to re-open Wabasha Street to all traffic.
  • Ward 2 Councilmember Rebecca Noecker is committed to working with the neighborhood to propose aesthetic improvements as part of a future-year capital project request. Once the road re-opens, the City will engage local residents and businesses in this next step.





August 28:

pw - excavator removing a large limestone slab from Wabasha Street
pw - crane working on Wabasha Bluffs







Apologies for a longer lapse in reporting the progress on Wabasha Bluffs.

  • The first phase of the removal of loose material and fallen debris from the bluff, and clean up took longer than expected.
  • The proposed gabion wall system (rock-filled wire baskets) was planned to be placed behind the existing sidewalk and small concrete retaining wall.
  • As the debris was removed from the bluff and cleared out behind the existing small retaining wall, it was discovered the underlying sandstone was deteriorated and unreliable. For safety reasons, contractors could not start construction of the gabion wall system at the originally planned location.
  • After additional site and engineering reviews, the plan was revised slightly. The gabion wall will be built; however, it must be built on the existing sidewalk, in front of the small concrete wall. This allows the gabion wall to be built on a more stable foundation of city-owned right of way.
  • With the new site plan (click here to see drawing), Wabasha will continue to be a two-way street with sidewalks on both sides of the street, as well as bike lanes.
  • The new road section will provide the following:
    • 2 vehicular lanes, matching the existing lane widths on either end (12’ wide)
    • 2 bike lanes (6’ wide)
    • 2 striped buffers (3’ wide), separating the vehicular lanes from bike lanes
    • 2 sidewalks (6’ wide) within grass boulevards
  • Construction of the gabion wall is expected to begin in September and be completed in October.
  • Road repairs, including rebuilding curb and sidewalks will occur after the gabion wall is completed.
  • Currently, we anticipate Wabasha to be re-opened in late November.
  • The final road repair will be a bituminous mill and overlay in Spring 2019.

July 9-end of July:

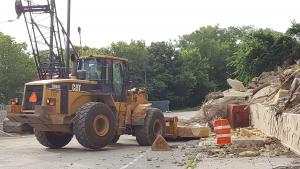

Machinery picking up large pieces of bluff debris from the street.

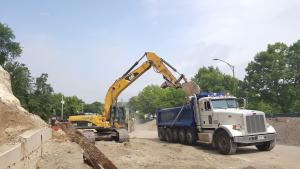

Excavator putting debris in back of dump truck







  • Contractor crews are cleaning loose and fallen debris from the bluff.
  • Rock materials are being hauled from the site. These materials are brought to facilities where they are re-purposed, or sorted, crushed, and re-used in construction.
  • As the removal of debris exposes rock and soil surfaces progresses, the city continues to review site conditions with contractors and consultants.
  • The next step in the construction of the gabion wall system will be to excavate and provide a compacted base for the wall to be built upon.

July 2:

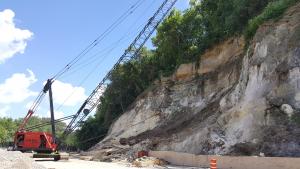

  • Contractor erected a crane to assist with debris removal and gabion wall construction.
  • Consultants finished and validated technical design of the gabion wall system with site survey and exposed slope conditions.

June 25:

  • City crews removed and salvaged railings and street lights to provide access necessary for debris removals.
  • Construction testing agency installed equipment to monitor and manage construction vibration.
  • Contractor established access routes through the site and started to remove loose debris from the slope.

June 20:

  • The city has approved construction of a 250-foot long Gabion Wall along the Wabasha Bluff in order to safely reopen Wabasha Street.
  • The finished Gabion wall is expected to be 12 feet tall and 9 feet wide.
  • Construction of the Gabion wall will protect the public and the roadway from natural erosion of the bluff without the risk of further destabilizing the bluff or drastically impacting adjacent properties.
  • Preparations to begin construction will start immediately with full construction likely to commence the week of June 25, 2018.
  • Construction of the wall, along with street repairs and cleanup, is estimated to take 12 weeks.
  • The estimated total cost of the Wabasha Bluff project, including consultants, construction of the wall, street repairs, and clean up is $1.1 million.
  • Below is a rendering of the wall.
Photo Rendering of Gabion Wall.

Week of June 18:

  • Itasca will provide additional requested engineering and cost estimates to the City.
  • The City will continue area clean up efforts.

Week of June 11:

  • Itasca inspected one additional rock feature from the private property at the top of the bluff.
  • Itasca presented recommendation(s) to City officials.
  • The City has requested additional engineering work and cost estimates before approving a final action plan. That work is expected to be completed next week.

Week of June 4:

  • Itasca inspected the bluff from the private property at the top, areas which were inaccessible from Wabasha street level.
  • City and Itasca coordinated with contractors regarding access, means and methods for removal of limestone blocks being considered for short-term actions.
  • City coordinated with property owners to author license agreements.

Week of May 28:

  • City of Saint Paul secured permission from private property owner to enter property to conduct additional assessment work from the top of the bluff.
  • City of Saint Paul is finalizing access agreements from neighboring properties.
  • Public Works is developing costs and timelines for potential remediation options to present to Mayor and city officials in the coming two weeks.
  • Public Works held a media briefing to share consultant's data and findings, along with some "working recommendations" needed in order to reopen Wabasha Street.

Week of May 21:

  • City staff completed records research and validated site survey data generated by the consultant, Itasca.
  • Itasca presented preliminary assessment findings to city officials.
  • Itasca began to develop potential remediation options.
  • City staff developed a communications plan and procedure to keep local businesses and residents most affected by the slope failure and the resulting road closure informed.

Week of May 14:

assessing the Wabasha bluff
  • Contractors developed a system to monitor the bluff and installed associated survey equipment next to Wabasha Street.
  • Contractors completed the initial field inspection of the bluff.  Geologists are analyzing the field records, in conjunction with survey data, to assess bluff stability.
  • Contractors are developing a series of alternative recommendations, to be presented to city officials next week.

Week of May 7:

  • Contractors continue to do assessments and inspections of the bluff.
  • A full report and recommendations from the contractors are expected within a few weeks.

Week of April 30:

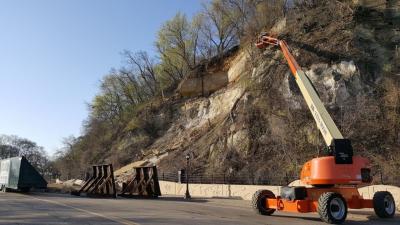

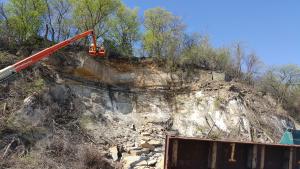

Lift being used to inspect the Wabasha Bluff

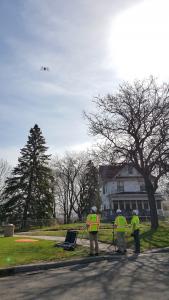

    Using drones to survey Wabasha bluff
    • A second consulting firm, Collins Engineering, performed a detailed aerial survey of the failed slope and adjacent bluff.  Three-dimensional geospatial data was collected using drone technology. Large lift equipment allowed experts to do hands-on observations and assessments.
    • Public Works and the contractors installed several large pieces of equipment to allow crews to safely operate within the site, and protect the streets, property and persons should any loose debris fall from the bluff during this process.
    • A pedestrian and bike pathway was opened on the east side of Wabasha.


    Traffic Impact

    • As of October 24, 2018, Wabasha Street has reopened for vehicle traffic.
